Workstation Outlets

Workstation Solutions for Your IBDN System Installation

Sec1a_1_1Belden provides a full complement of modular work area components – including outlet boxes, faceplates, inserts and adapters – so you can complete the workstation installation portions of your state-of-the-art Belden IBDN networking system quickly, efficiently and aesthetically.

The MediaFlex, KeyConnet, Interface and MDVO Outlets are compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400and 1200.

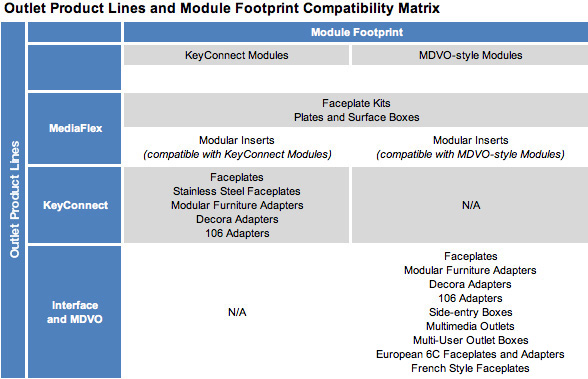

Quickly check the compatibility of the outlet to the module you intend to use using the chart below.
Compatability_Matrix2

Technical Info

Recommendations for Workstation Outlets Using Shielded Jacks

Sampling of our Selection

European (6C) Style Faceplates and Inserts are designed to accept the GigaFlex and EZ-MDVO UTP Modules. Available in various configurations.
French Style Faceplates are designed to accept the EZ-MDVO and GigaFlex UTP Modules, as well as MDVO Multimedia Modules. Available in 1-port and 2-port configurations.

KeyConnect Workstation Outlet Systems comprise a wide range of faceplates, adapters, and boxes, combined with a complete line of KeyConnect UTP, coax and fiber modules. KeyConnect Modules also fit into KeyConnect and AngleFlex Patch Panels in the data center or telecommunications room, providing the added benefit of installation flexibility, uniform aesthetics and reduced inventory. The module’s footprint also allows for high-density use in patch panels and outlets.

Interface Plates combine flexibility and ease of use. They are designed to accept the EZ-MDVO and GigaFlex UTP modules as well as MDVO Multimedia Modules. Available in single gang to accept up to six modules.

Interface/MDVO Surface Adapter Box allows surface mounting of Interface Plates as well as MDVO Flush and Angled Faceplates. The boxes can be mounted on any flat surface or can be attached to standard electrical boxes or wall-mounting hardware for additional storage space.

MDVO Adapters are compatible with GigaFlex, EZ-MDVO and MDVO Multimedia Modules. Style variations include MDVO Side Entry Box, MDVO 106 Adapters, MDVO Deco Adapter, and MDVO Modular Furniture Adapters.

MDVO Angled Entry Faceplates offer better patch cord protection than traditional faceplates and optimize patch cord bend radius control. The angled faceplates can accept up to four EZ-MDVO or MDVO Multimedia Modules. They can also fit over the Interface Surface Connector Box for surface mount installations.

MDVO Flush Faceplates combine ease of use and aesthetics in work area installations. The single gang faceplates are available in 1-port and 8-port configurations and can fit over the Interface Surface Adapter Box for surface mount installations. Double gang faceplates are configured for 12 ports.

MediaFlex Faceplate Kit consists of MediaFlex Plates and Inserts that snap together to create a full line of modular workstation outlets. Available in multiple colors.

MediaFlex Inserts provide optimum flexibility in configuring multimedia workstation outlets for current and future network needs. Belden offers MediaFlex MDVO-style Inserts, MediaFlex GigaFlex Inserts, MediaFlex Multimedia Inserts and MediaFlex Filler Inserts and accessories in a variety of colors and configurations.

  • See the Data Sheet for more information on MediaFlex GigaFlex Inserts.
  • See the Data Sheet for more information on MediaFlex MDVO Style Inserts.
  • See the Data Sheet for more information on MediaFlex Multimedia Inserts.
  • See the Data Sheet for more information on MediaFlex Filler Insert.

MediaFlex Plates comprise one part of the snap-together line of plates and inserts. The plates can be mounted over standard NEMA type outlet boxes and rings to provide support for a variety of MediaFlex Adapters and Inserts. Their fully modular construction, combined with the front access design, provide extensive configuration flexibility for current and future network needs. Available in multiple colors and in single gang and double gang configurations.
MediaFlex Surface Adapter Boxes can be mounted over standard NEMA type outlet boxes and rings to provide support for the MediaFlex Plates. Available in a double gang configuration.

Stainless Steel Faceplates are ideal for labs, sanitary, medical and harsh environment applications. Available in single gang and double gang configurations, they accept Keystone-style modules such as GigaFlex PS5E and EZ-MDVO Modules.
